RSV4 Engine Height Adjustment Kit ‘+0’ by FlyHammer
Fine-Tune Your Aprilia’s Chassis Geometry
Overview

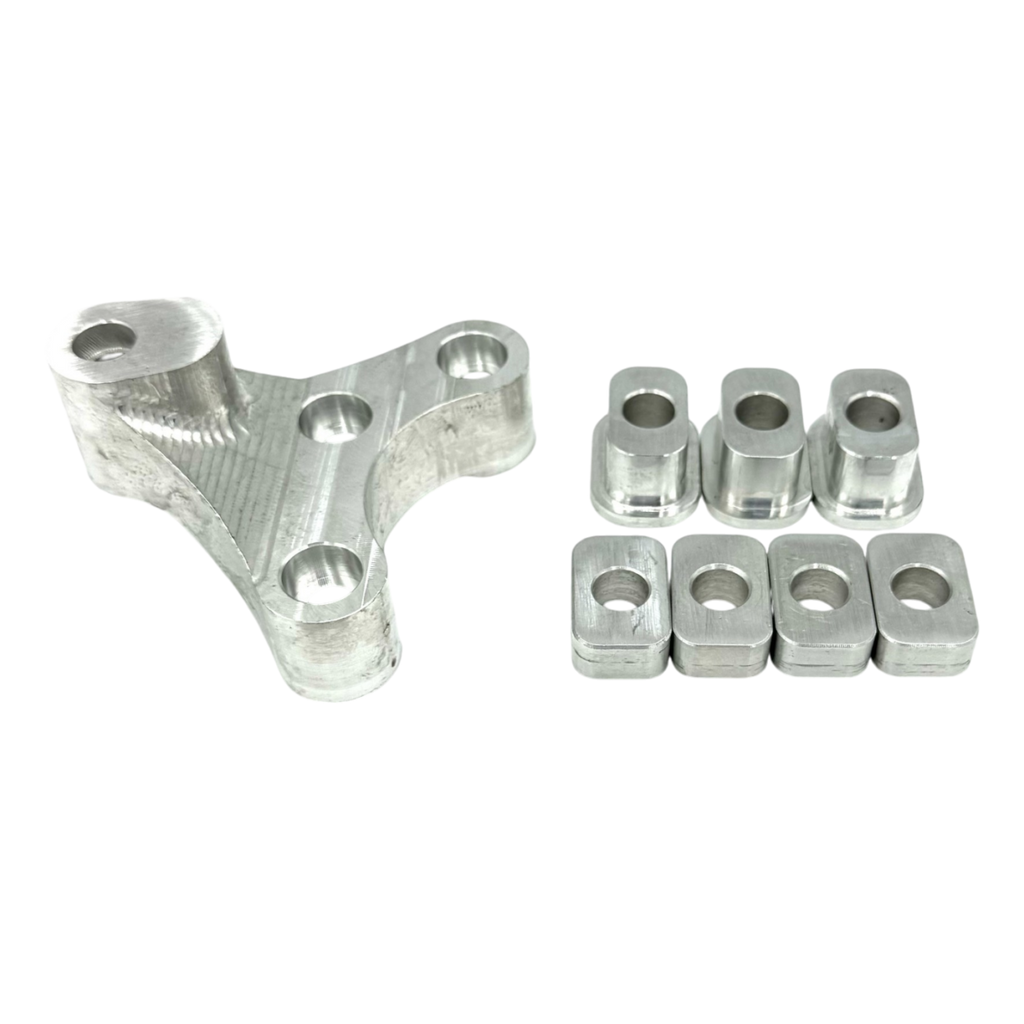

Crafted from solid billet material using CNC machining, this FlyHammer kit enables precise adjustment of your RSV4’s engine height within the frame.
Check also the FlyHammer Swingarm Pivot Plates here:
FlyHammer Swingarm Pivot Plates +/- 2,5 for Aprilia RS V4
Also available in bundle "plates + engine position kit" here:
Chassis Adjustment Kit for RS V4 by FlyHammer
Technical Specifications
-
On RSV4 models up to 2012, the engine comes positioned at +5 mm
-
On RSV4 models from 2013 to 2015, the factory position is 0 mm
-
On RSV4 models from 2016 to 2024, the engine is set to –5 mm
This kit provides full flexibility to alter the engine height across all RSV4 generations.
The most frequently used offset is 0 mm. If you need a different setting, please choose it when ordering:
-
0 mm (default unless otherwise requested)
-
±2.5 mm
Offset: 0 mm
Compatibility:
-
RSV4 2009–2014
-
RSV4 RF 2015–2016
-
RSV4 RF 2017–2020
-
RSV4 1100 E5 2021–present
