Gabro Racing Evo Race Airbox Kit for Aprilia RS660 & Tuono 660
Upgrade your Aprilia’s intake system with the GRT Evo Race Airbox Kit!
Overview
Developed by the Gabro Racing Team in collaboration with DMZ Engineering, the GRT Evo Race Airbox Kit brings race-proven performance to the Aprilia RS660 and Tuono 660.
This latest version maintains the same competition-tested design while introducing a new two-piece construction with a dedicated filter support, engineered specifically for:
Sprint Filter PM176S Sprint Filter 660 RS Tuono PM176S for Aprilia
or Sprint Filter PM176S F1-85
Please note: filters sold separately.
Performance & Design
Built to perform reliably throughout an entire race season, the kit delivers exceptional gains on both stock and modified engines, including those fitted with Akrapovic or SC-Project systems.
Key performance advantages include:
-
20% increase in post-filter airbox volume
-

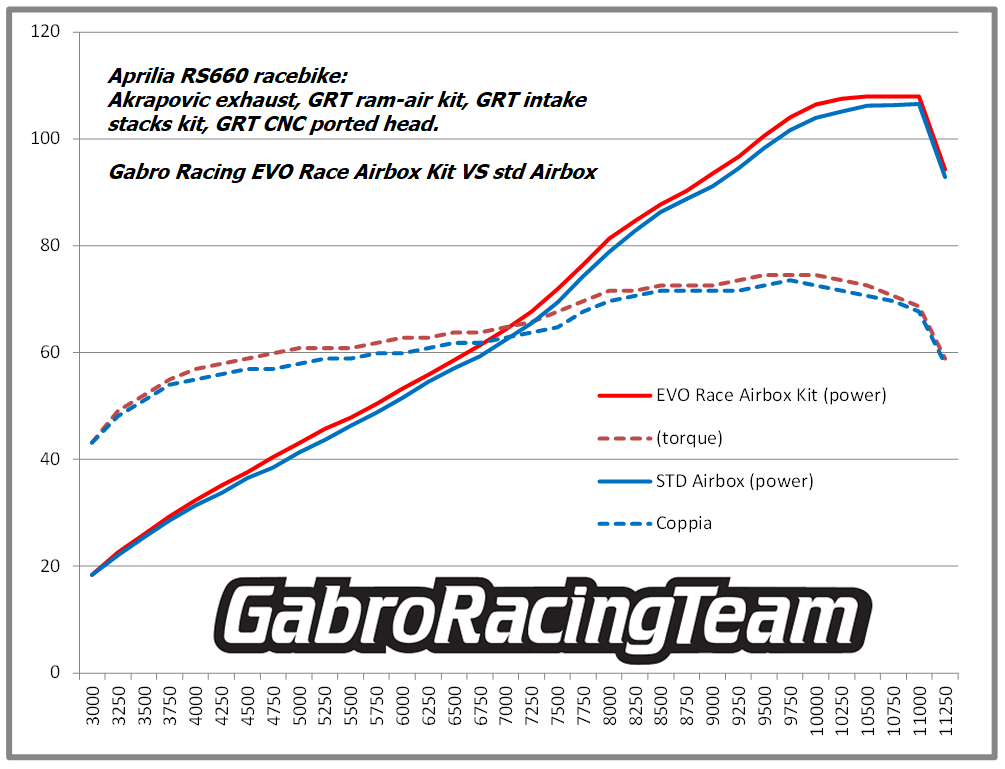

+2–3 HP across the entire power band
-
40% lighter than the OEM airbox with a Sprint filter
Using the fuel tank as the airbox lid, the system seals with an O-ring to maximize internal volume and maintain strong pressurization right above the velocity stacks.
Key Benefits
-
+20% intake volume
-
+2–3 HP from low to high RPM
-
40% weight reduction vs. stock airbox
-
Two-piece layout with dedicated Sprint Filter support
-
Quick airbox removal for easy throttle-body and spark-plug access
-
Simplified filter inspection and cleaning
-
Fast and precise installation
Who Is It For?
Ideal for performance-focused riders and racers looking to enhance intake efficiency and boost engine output while keeping a race-ready, easily serviceable setup using premium Sprint Filter components.
Product Details
Maintenance is significantly faster: simply lift the fuel tank to access the ducts and filter. The airbox can be removed within seconds for service on the throttle bodies, spark plugs, or cylinder head.
Additional features:
-
Inspectable, regulation-compliant crankcase breather system
-
No open vents (race-legal configuration)
-
100% Made in Italy
-
Manufactured using reinforced PA12 with MJF 3D-printing for maximum strength, low weight, and perfect fit
-

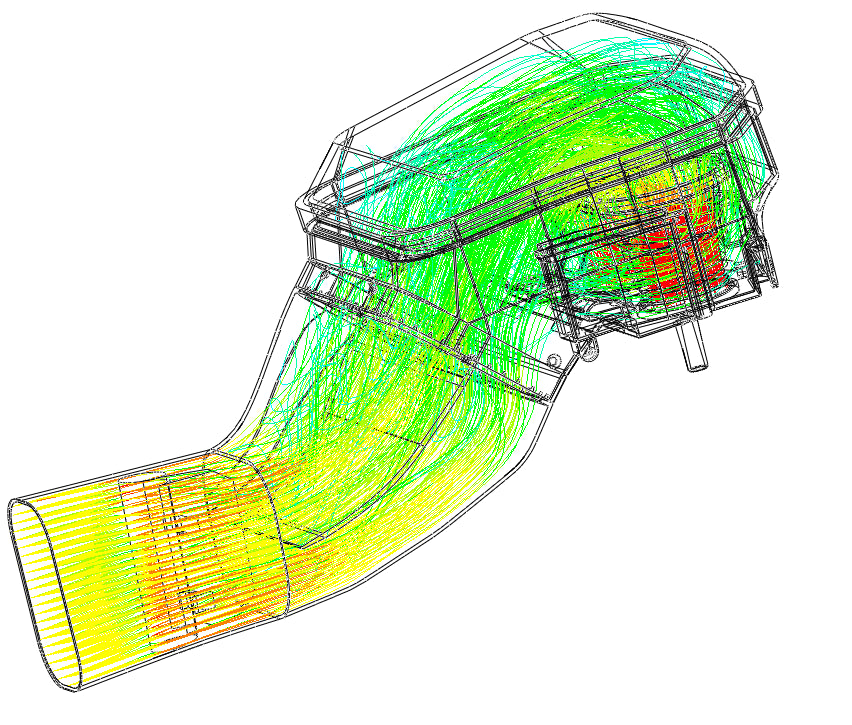

CFD-optimized design for ideal airflow
Specifications
-
Material: Reinforced PA12 (MJF 3D printing)
-
Intake Volume: +20% vs. stock
-
Weight: 40% lighter than OEM
-
Filter Compatibility: Sprint Filter PM176S / PM176S F1-85 (sold separately)
Compatible Filters (Sold Separately)
This kit must be paired with one of the following:
-
Sprint Filter PM176S
-
Sprint Filter PM176S F1-85
Recommended Add-Ons
Optimize your setup by combining the Evo Race Airbox Kit with:
-
Gabro Racing Ram-Air Kit Air scoop 660 by GRT for Aprilia RS, front fairing
-
Gabro Racing Velocity Stacks Kit Velocity stacks 660 for RS and Tuono 660 by GRT
Installation Notes
-
Minor repositioning of the engine wiring harness is required.
-
PAIR system and tank ventilation must be removed (fully reversible).
-
Gabro Racing’s custom UpMap offers complete electronic deactivation of these systems, including lambda sensors.
If you need an UpMap device, it can be purchased here:
Aprilia UpMap RS Tuono 660 T800+ with map
Important
-
This is a racing product intended for closed-circuit use only.
-
Check your racing series’ technical rules before installation.
-
Shipping lead time: approximately 3 weeks.
