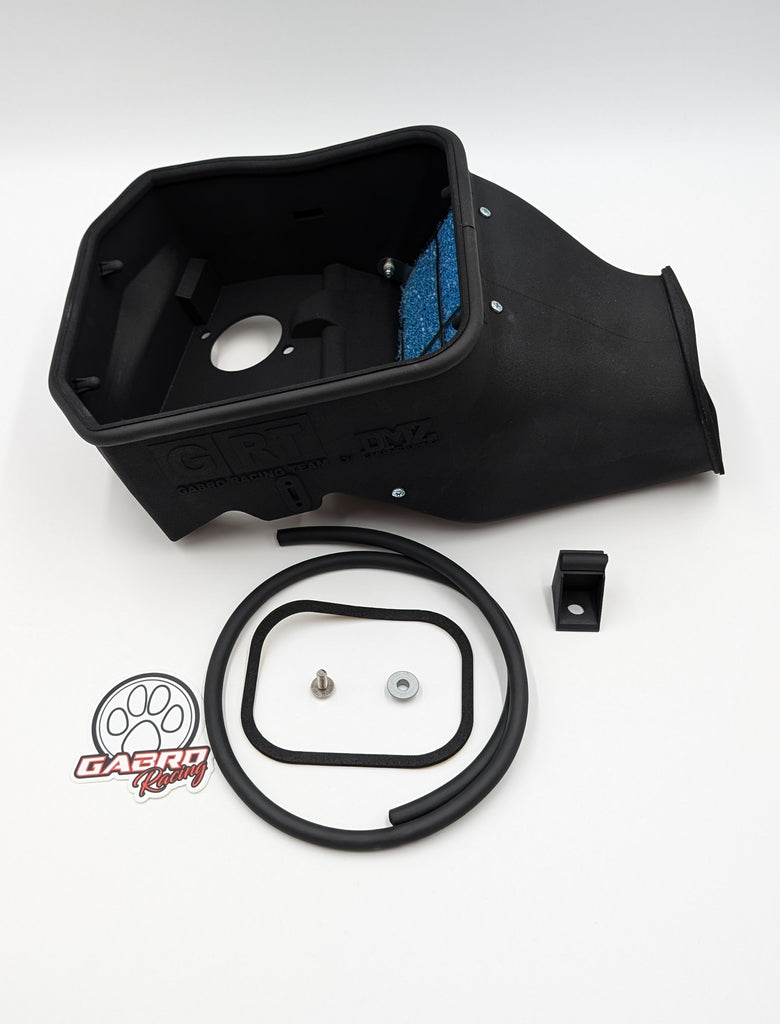

Take your bike to the next level of performance!

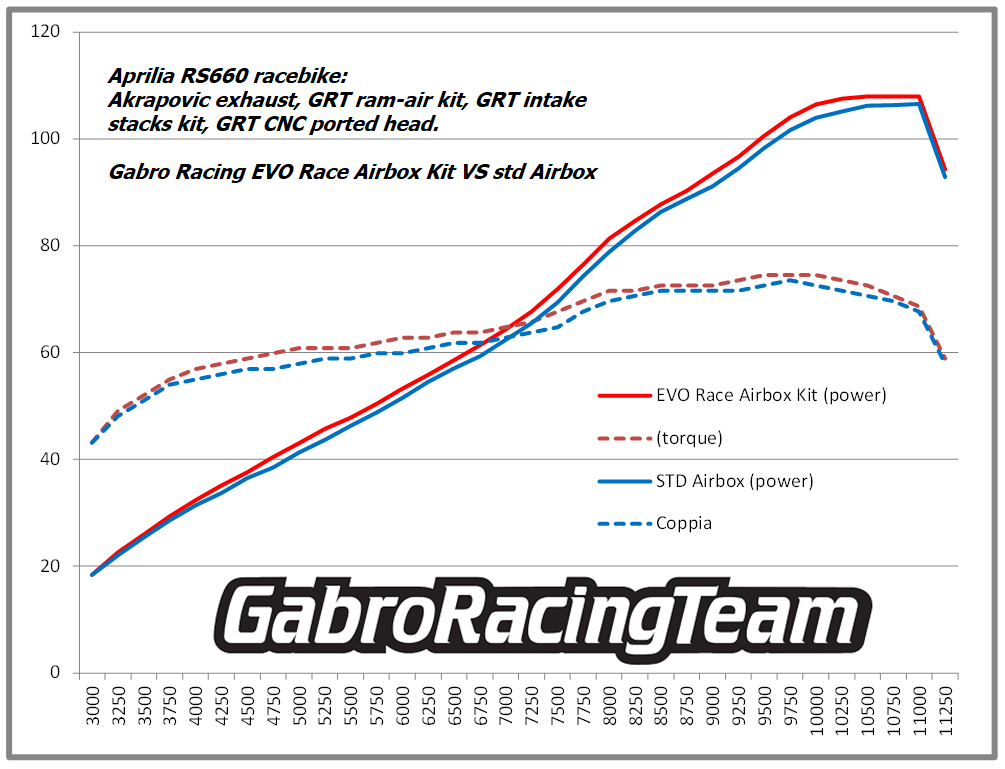

This new race airbox kit gives 20% more volume downstream the filter, +2-3hp on the whole power plot and 40% weight reduction compared to stock airbox fitted with Sprint air filter.
The fuel tank is used as airbox lid, sealing it with an o-ring. It has a built-in engine casing breather and it has no open drains, as required by racing rules. Bike maintenance and motor accessibility is easier and faster.
Supplied air filter is made in a fire-proof sponge and is very free flowing, but you can cut and fit a finer filtering panel if you use the bike in a dusty track.
It’s made in MJF technology 3D-print in PA12 carbon reinforced powder to ensure a good strength combined with light weight and a precise and repeatable fitting.
Geometry and air flow path has been intensively optimized using CFD calculations thanks to DMZ Engineering, our partner in this project.
Installation note: the engine wiring loom needs a little relocation and removal of pair system and tank ventilation system is needed.
UpMap customized race mapping by Gabro Racing Team provides a full electronic deactivation of those items, including lambda probes. UpMap available here:
Aprilia UpMap RS Tuono 660 T800+ with map
OPTIONAL LID:
The “open top” setup only works on stock OEM fuel tank. For the use of the airbox with aftermarket large capacity aluminium-made fuel tanks you can buy and install an optional lid/cover.
We suggest a combined installation of this airbox with our Ram Air Scoop for RS 660, and also velocity stacks. Available here:
Front fairing stay with ram air scoop by GRT for Aprilia RS 660 – www.mbspecialparts.co.uk
VELOCITY STACKS KIT APRILIA RS 660 TUONO 660 – www.mbspecialparts.co.uk
